Article Number

A-071341

Detector Type

thermal absorber

Spectral Range [μm]

0.19 - 15

Board Diameter (d) [mm]

35.0

PCB Base Material

1.5mm Alu-Core PCB

Product Thickness (t) [mm]

2.5

Sensing Area (a x b) [mm x mm]

10.0 x 10.0

Max. Power [W]

5

Noise Equivalent Power a [μW]

7

Typical Power Resolution with gSKIN®DLOG b [μW]

9

Max. Average Power Density [W/cm²]

500

Min. Sensitivity (Z) [mV/W]

70

Temperature Dependence of Z [%/°C]

0.125

Integrated NTC or platinum Thermistor

optional for OEM applications

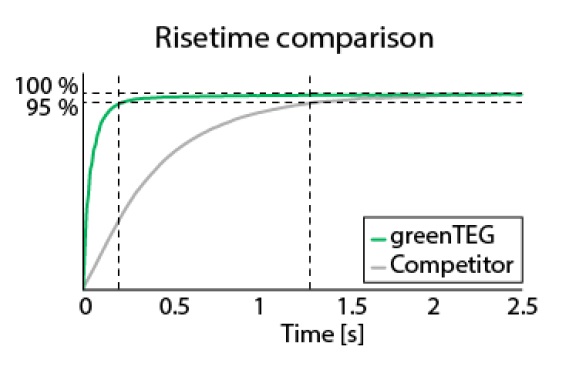

Response Time (0-95%) [s]

0.8 c / 2.8

Operating Temperature Range Min / Max [°C]

-50 / 150

Cooling Method

conduction, convection

Homogeneity d [±%]

1

Linearity with Power [±%]

0.5

Electrical Connection

solder pads

Mounting Method

screws (2 x M2) and/or thermal glue gSKIN®MOUNT-1213
